ZOSI 3MP WiFi Security Camera System,8 Channel NVR,Home WiFi Mesh,Spotlight Siren Alarm,Two Way Audio,Pre-installed 1TB HDD,W4 Pro
Rated 3.5/5 based on 11 customer reviews
Sale

ZOSI 3MP WiFi Security Camera System,8 Channel NVR,Home WiFi Mesh,Spotlight Siren Alarm,Two Way Audio,Pre-installed 1TB HDD,W4 Pro

  • Product SKU: ZSWNVK-U83041-W
$399.99 $234.99
Hurry! only 82 left in stock!
Payment

Warm Note: This product will be shipped out at the end of November 2021.


Upgraded Mesh WiFi System

Boast cascading and wall-penetration algorithm, W4 Pro provides higher performance for long-distance and reliable WiFi connection. So you can feel free to use the cameras to cover your most distant property.

  • 2.4 GHz WiFi

  • No Messy Cabling

  • Up to 3000ft WiFi Range (in Open Areas)

Highly Integrated WiFi Chip

Designed for WiFi security system, this WiFi module ensures robust and stable WiFi connectivity. Auto cascading technology offers longer WiFi range and ability to penetrate walls or other barriers.

Auto-Pair, True Plug & Play

Power on the whole system, and all the cameras will pair with NVR automatically via 2.4 GHz WiFi. Easy-to-install plug and play wireless security camera system.



Sharp & Clear in 3MP Super HD

With resolution of 2304x1296 (3 megapixels), plus advanced 3D-DNR technology reduces noise levels, the wireless home security camera system capture clear and smooth videos in subtle details.

Enhanced Night Vision

With 3 megapixels CMOS sensor and 3D-DNR technolog, this camera sees and records clear image up to 50ft in the dark.

Detects Humans, Ignores Distractions

Based on an advanced AI human detection algorithm, W4 Pro can distinguish people from other motions, and thus effectively reduces “false positives” on trivial objects’ movements.

Smart & Active Deterrence

The camera detects human, and activates spotlights and siren alerts to warn off would-be criminals. The most vigilant guard defend your property 24/7.

See, Hear and Talk over the Camera

Without even leaving your seat, you can watch the live view from your smartphone, and use two-way audio to respond to guests or warn off the unwanted from anywhere.

  • Microphone

  • Speaker

H.265+ & AVBR Video Compression

H.265+ plus AVBR video compression algorithm saves more than 50% bandwidth and storage compared with H.264 standard. Enjoy sharper and smoother viewing without latency.

H.265+ & AVBR

H.264

Required Storage Space & Bandwidth

h.264

100%

h.265

50%

Continuous 24/7 Recording and Playback

Pre-installed 1TB hard drive, the W4 Pro security camera system supports 24/7 non-stop recording of up to 8 cameras at the same time, and you can expand the hard drive up to 8TB.

  • Up to 8TB HDD via SATA

Local and Remote Viewing For local access

Connect the camera system to a monitor or an HD TV.

For remote access

Free ZOSI Smart App on mobile devices.
Free ZOSI AVSS client on PC/Mac.

  • Zosi Smart

  • Zosi Smart

    AVSS

Use ZOSI Smart App and AVSS Client to Access Cameras

1.Download and install free Zosi software on your device

2.Open to add cameras

3.Click the camera to get Live View

Warm Note: This product will be shipped out at the end of November 2021.


Upgraded Mesh WiFi System

Boast cascading and wall-penetration algorithm, W4 Pro provides higher performance for long-distance and reliable WiFi connection. So you can feel free to use the cameras to cover your most distant property.

  • 2.4 GHz WiFi

  • No Messy Cabling

  • Up to 3000ft WiFi Range (in Open Areas)

Highly Integrated WiFi Chip

Designed for WiFi security system, this WiFi module ensures robust and stable WiFi connectivity. Auto cascading technology offers longer WiFi range and ability to penetrate walls or other barriers.

Auto-Pair, True Plug & Play

Power on the whole system, and all the cameras will pair with NVR automatically via 2.4 GHz WiFi. Easy-to-install plug and play wireless security camera system.



Sharp & Clear in 3MP Super HD

With resolution of 2304x1296 (3 megapixels), plus advanced 3D-DNR technology reduces noise levels, the wireless home security camera system capture clear and smooth videos in subtle details.

Enhanced Night Vision

With 3 megapixels CMOS sensor and 3D-DNR technolog, this camera sees and records clear image up to 50ft in the dark.

Detects Humans, Ignores Distractions

Based on an advanced AI human detection algorithm, W4 Pro can distinguish people from other motions, and thus effectively reduces “false positives” on trivial objects’ movements.

Smart & Active Deterrence

The camera detects human, and activates spotlights and siren alerts to warn off would-be criminals. The most vigilant guard defend your property 24/7.

See, Hear and Talk over the Camera

Without even leaving your seat, you can watch the live view from your smartphone, and use two-way audio to respond to guests or warn off the unwanted from anywhere.

  • Microphone

  • Speaker

H.265+ & AVBR Video Compression

H.265+ plus AVBR video compression algorithm saves more than 50% bandwidth and storage compared with H.264 standard. Enjoy sharper and smoother viewing without latency.

H.265+ & AVBR

H.264

Required Storage Space & Bandwidth

h.264

100%

h.265

50%

Continuous 24/7 Recording and Playback

Pre-installed 1TB hard drive, the W4 Pro security camera system supports 24/7 non-stop recording of up to 8 cameras at the same time, and you can expand the hard drive up to 8TB.

  • Up to 8TB HDD via SATA

Local and Remote Viewing For local access

Connect the camera system to a monitor or an HD TV.

For remote access

Free ZOSI Smart App on mobile devices.
Free ZOSI AVSS client on PC/Mac.

  • Zosi Smart

  • Zosi Smart

    AVSS

Use ZOSI Smart App and AVSS Client to Access Cameras

1.Download and install free Zosi software on your device

2.Open to add cameras

3.Click the camera to get Live View

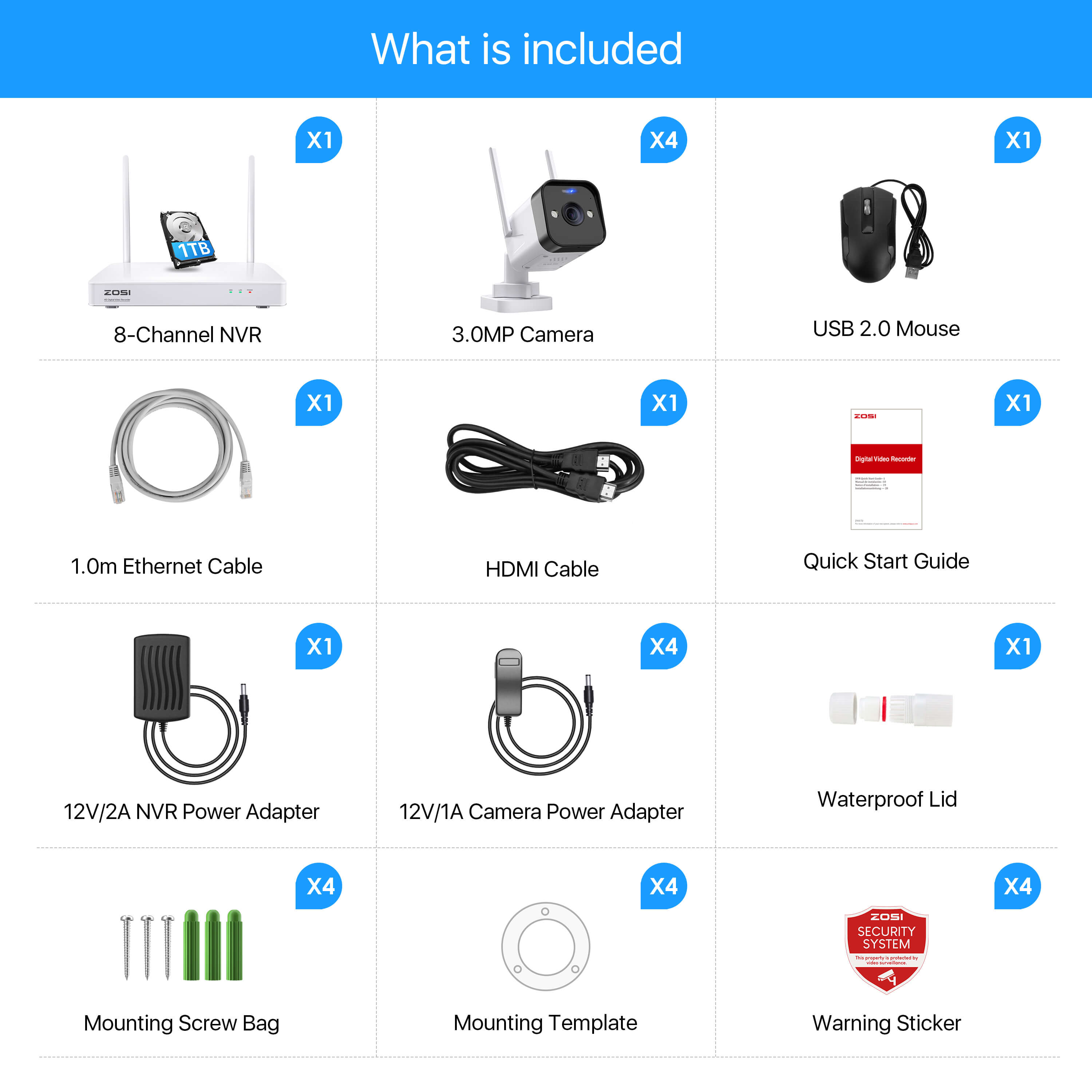

4 Cameras Package



Wifi IPC Specification

Camera

Resolution: 3MP

Sensor: 1/2.7" Progressive Scan CMOS

Shutter: Shutter adaptive

Lens: 3.6mm @ F2.0 90°

Lens Interface: M12

Photosensitive components: Soft photosensitive

Minimum Illumination: 3Lux(Color mode),0.2Lux (B&W mode), 0Lux with IR-LEDs ON

White Light: 2pc (Turn it on at 10meters in night vision mode, and more than 15meters in full color night vision)

Warnning Light: Will be flashed in sequence when movement or human be detected

Day/Night Mode: ICR infrared filter

Infrared Distance: 4-6PCS (20 meters low light supplements effective night vision distance)

Compression Standard

Video Compression Standard: H.265/H.265+ Main Profile

Video Compression Rate: Ultra HD(3304*1296 1Mbps 15FPS)& SD(608*352 600Kbps 15FPS)

Audio Compression Standard: G.711A


Maximum Image Size: 2304*1296(Main stream), 608*352(Substream), Support Dual stream

Frame Rate: 15fps (self-adaptive network frame rate)

Image Settings: Brightness, Acutance, Contrast and Saturation (set up via NVR)

Privacy Masking: 4 blocks (set up via NVR)

Function

Intelligent Alarm: Smart motion alerts, smart AI human-detect alerts, Sound & Light alarm

Audio Input: 1pc microphone

Speaker: 1

Mirroring: Yes (set up in NVR)

DNR (Digital Noise Reduction): 3D-DNR

WDR (Wide Dynamic Range): N/A

BLC (Backlight Compensation): Yes

HLC (Highlight Compensation): Yes

Protocol: onvif

Browser: N/A

Interface

LAN Port: 1 RJ45 10M/100M Self-adaptive Ethernet port

Power Supply Port: DC12V

Reset Button: Support using NVR and Avss to reset IPC

Network Indicator: 1 (network connection status prompt)

WiFi

Wireless Standards: IEEE802.11b/g/n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: 40MHz

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps

Network protocol: HTTP; DHCP; DDNS; IPv4; NTP

General

Working Temperature & Humidity: '-10℃~60℃, humidity < 95% (non-condensing)

Power Supply: DC 12V±10%

Power Consumption: MAX

Ingress Protection: IP66 (waterproof & dustproof)

Dimension(mm): 72mm*72*150mm

Weight: Bare machine

8CH Wifi NVR Specification

Video & Audio Output

CVBS Output: 0

Audio Output: 1CH, RCA port (linear level, impedance: 600Ω)

VGA Output: 1920×1080/1280×1024/1024×768

HDMI Output: 1920×1080, 1280×1024, 1024×768

Video & Audio Encoding and Decoding

Video Compression Standard: IP channel supports 3Mp H.265+

Video Encoding Resolution:  2304X1296

Video Bit Rate: 32Kbps~1Mbps

Stream Type: Variable Stream

Dual Stream: Support dual-stream network transmission (PC, Macbook, APP)

Audio compression standard: G.711a

Synchronous Replay: 4 Channels

Image Settings: Settings of the brightness, saturation, color and etc. for the cameras

WiFi

Antenna: Dual Antenna

Wireless standard: IEEE802.11a/b/g/n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: 20MHz-40MHz

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps, 300Mbps

Add Device: Support WiFi IPC and WiFi NVR directly connected via Ethernet cable

Transmission Distance: 200m in open areas (non-cascading), 350m cascade connection

Hard Disk Drive

Type: 1 SATA port

Maximum Capacity: Up to 8TB

Recording

Recording Mode: Manual recording, scheduled recording, motion detection recording

Playback Mode: Instant playback, regular playback, event playback, alarm playback

Backup Mode: Regular backup, event backup

Network Management

LAN Port: 1 RJ45 10M/100M Self-adaptive Ethernet port

Network Protocol: IPv4, NTP (Network Time Protocol), SMTP (Mail service)

Client: Windows system (windows XP, windows7, windows8, windows10) and macbook

Phone: Android,iOS system

Permissions: N/A

Intelligent alarm

Email Alerts: Yes(with motion snapshot, attachment is the main stream image)

Motion Detection: Yes (IP camera)

Push Notification: Support domestic and foreign App push

External Interface

Voice Intercom Input: 1 RCA port

Internet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

USB Interface: 2 USB 2.0

Alarm Input: 0

Alarm Onput: 0

General

Power Supply: DC12V/2000mA

Power Consumption (not include HDD): ≤24W

Operating Temperature: -10℃~+55℃

Operating Humidity: 10%~90%

Dimension: 272mm (W) × 186mm (D) × 35mm (H)

Weight (not include HDD): ≤0.95Kg
